Fit the roof lining

Prerequisite

The front seats have been fully adjusted towards the bottom.

The front seat backrests have been fully adjusted towards the rear.

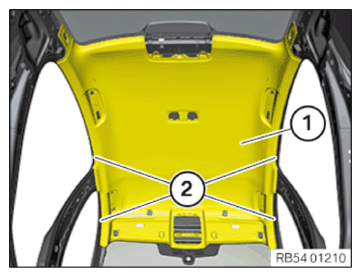

• Insert the headlining (1)  into the edge protectors (2)  with support from an auxiliary person.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the frame (1)  to the roof using the clips (2)  .
• If necessary, clip in the cable clip into the frame (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Secure the frame (1)  to the roof using the clips (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in trim (1)  using clips (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install all GRAB HANDLES .
• Install both c-pillar TRIM PANELS .
• Partially install top left and right b-pillar TRIM PANELS
• Install rear interior roof LIGHT .
• Install the interior MIRROR .
• Install the interior mirror COVERS .
• Install roof FUNCTION CENTER (FZD).
• Install the left and right SUN VISOR
• Install both vanity mirror LIGHTS .
• Install left and right sun visor counter SUPPORTS .
• Install the right hands-free MICROPHONE .
• Install left hands-free MICROPHONE .
• Install the left and right a-pillar TRIM PANEL .
