51 45 031 Replacing instrument panel trim (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove glove box damper
Remove glove box damper

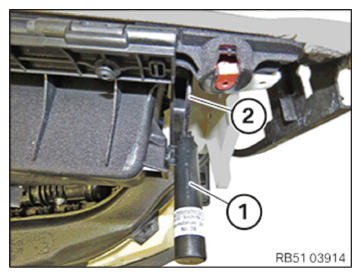

Release glove box damper
(1)
from the retaining bracket
(2)
.
Turn the glove box damper
(1)
counter-clockwise by approximately 90° and remove.
Courtesy of BMW OF NORTH AMERICA, INC.
