Check the plug connection of the DSC control unit
WARNING:
Vehicle may slip off the vehicle hoist if the vehicle hoist is handled incorrectly. Danger! Immobilization period-threatening injuries!
- Observe safety instructions on raising the vehicle using a vehicle hoist.
- For additional information see: 00... Raise the vehicle using a VEHICLE LIFT .
NOTE:
TECHNICAL INFORMATION
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.
Do not interchange brake lines. If necessary, mark the brake lines before disassembly.
Note various equipment specifications with different line seizure.
Do not bend brake lines.
Close off connecting bores with seal plugs.
Preliminary work
- Install brake pedal TENSIONER .
- Remove the front left WHEEL .
- Remove the rear section of the front wheel arch COVER .
- Remove side UNDERBODY PLANKING .
- Remove HYDRAULIC UNIT .
Check

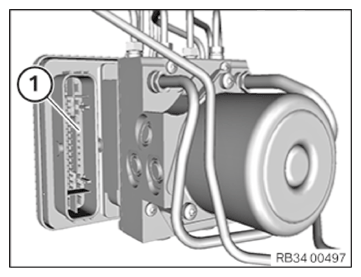

- Check plug connection (1) for damage.
Result
» The plug connection (1) is faulty.
Measure
- Replace DSC control unit.
Parts: DSC control unit
