(23 Universal transmission retaining bridge)

Special tools required:

NOTE: Transmission retaining bridge 24 0 200 is suitable for manual and automatic transmissions

IMPORTANT: The adapter and shaft must be adapted to positively lock with the transmission.

(Injury hazard)

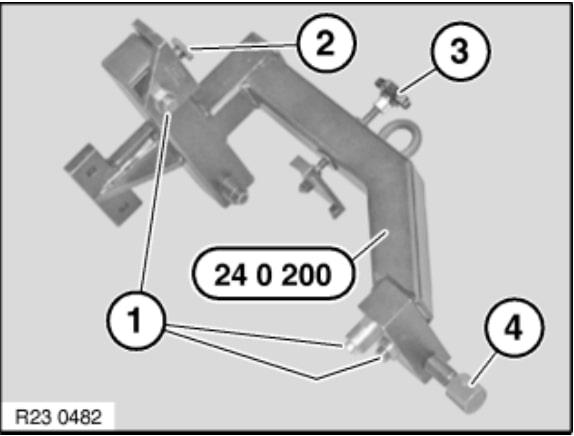

Adapt the adapter (1) and spindle with the thrust piece (3) on the transmission.

Adjust the length using the sliding piece (2).

Screw in spindle (4).

IMPORTANT:

Before mounting on assembly jig 0 495 187 check retraining bridge for firm fit.
