Installing front passenger airbag

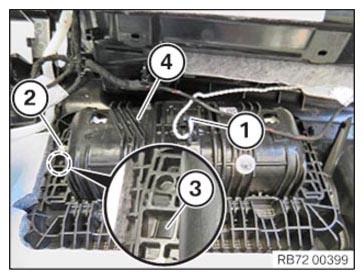

- Make sure the plug connection is (1) not unlocked and disconnected.
- Check the locking tab (3) and the brackets on the front passenger airbag (4) for damage.
- The locking tab (3) and the brackets must not be damaged or missing.
- Slide the front passenger airbag (4) to the right into the brackets until the locking tab (3) engages.
- Tighten down screw (2) .
TIGHTENING TORQUES SPECIFICATION
| Front passenger airbag | ||
|---|---|---|
| Oval-head screw | Tightening torque | 2.0 |

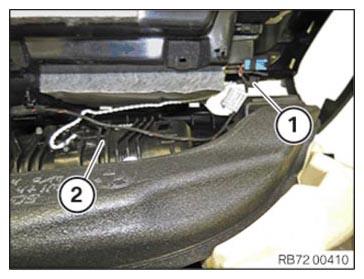

- Connect and lock plug connector (1)
on the front passenger airbag (2)
.

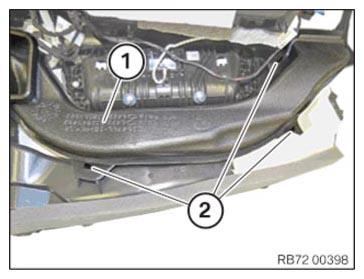

- Fold the air duct (1) downwards and into the latch mechanisms (2) .
