Install transmission oil pan (all-wheel drive vehicle) (GA8HP50Z, GA8HP51Z)

• Clean the contact surface of the transmission oil pan on the transmission.
• Replace screws (1) to (13).

  Parts:  screw

• Position the transmission oil pan.
• Hand-tighten the bolts.

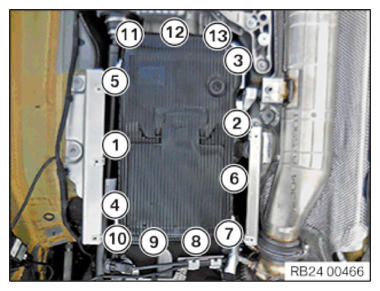

• Tighten screws in the order (1) to (13).

  Courtesy of BMW OF NORTH AMERICA, INC.

  TIGHTENING TORQUES SPECIFICATION



  Transmission oil pan
  M6 Replace screws.	Tightening torque	10 Nm

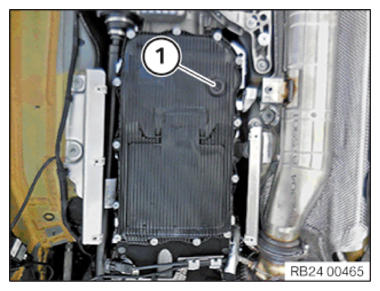

• If necessary, tighten the oil drain plug (1).
  TIGHTENING TORQUES SPECIFICATION



  Oil drain plug
  M18 Replace screw.	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Check/top up the automatic transmission OIL LEVEL .
• Install rear UNDERBODY PROTECTION .
• Install the transmission side UNDERBODY PLANKING .
