Installing the mechatronics

NOTE: RISK OF DAMAGE
Damage to the automatic transmission after removal of the mechatronics.
Serious damage to the automatic transmission due to non-compliance with the following tasks:

Load specific data status with the diagnostic system using an appropriate scan tool.
Use only approved TRANSMISSION OIL .
After completion of repair work, check the transmission OIL LEVEL .

Replace pressure pipe.
Parts: Pressure pipe
Install pressure pipe (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Fit mechatronics unit.

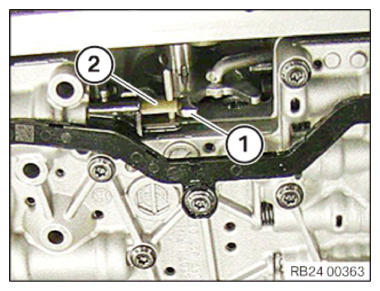

Feed shifting claw (1) into gearshift shaft (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Install mechatronics.
Tighten wing nuts (1) of the special tool 0 496 715 (24 1 430) alternately until the mechatronics is applied to the transmission.

Courtesy of BMW OF NORTH AMERICA, INC.
Position the screws (1) and slightly tighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Pull the selector shaft tappet (1) downward with the special tool 2 355 850 (3) in the arrow direction.
Remove the special tool 2 355 850 (2) in the direction of the arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Note the original installation position of the output RPM sensor.
Observe the correct installation position when installing the output RPM sensor.

NOTE: TECHNICAL INFORMATION
The tappet on the output RPM sensor may break off during removal or installation.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach output RPM sensor (3) carefully and slide onto the stop.
Position the screws (2) and slightly tighten.
Loosen wing nuts.
Remove special tool 0 496 715 (24 1 430) .
Position the screws (1) and slightly tighten.
Replace the sealing sleeve (1).
Parts: Sealing sleeve
Carefully insert the sealing sleeve (1).
The lug must be in the inner surface.
Twist the sealing sleeve (1) until the lug has been inserted into the groove of the gear.
Slide in sealing sleeve (1) up to the stop.
The lug on the sealing sleeve must not be damaged!
Remove special tool 0 494 213 (24 2 390) .

Courtesy of BMW OF NORTH AMERICA, INC.
Lock the sealing sleeve with the slide (2).
Position the screw (1) and slightly tighten.

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the connector (1) in the direction of arrow.
Lock the connector (1) by turning the direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace screws.
Parts: screw

NOTE: TECHNICAL INFORMATION
When assembling, it is essential to observe screwing sequences and tightening torques.
Non-compliance with the regulations can lead to damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screws in the order (1) to (17).

TIGHTENING TORQUES SPECIFICATION

Mechatronics to transmission
M6x59, M6x20 Replace screws.	Tightening torque	8 Nm

TIGHTENING TORQUES SPECIFICATION

Output RPM sensor to transmission (position 17)
M6x20 Replace screw.	Joining torque	4 Nm
	Angle of rotation	12°

Follow-up work

Install the oil volume RESERVOIR (GA8HP50Z, GA8HP51Z, GA8HP75Z, GA8HP76Z, GA8HP95Z)
Install transmission OIL PAN (all-wheel drive vehicle) (GA8HP50Z, GA8HP51Z).
Reconnect all battery GROUND LEADS .
Check/top up the automatic transmission OIL LEVEL .
Install rear UNDERBODY PROTECTION .
Install the transmission side UNDERBODY PLANKING .
Activate the 48 v ELECTRICAL SYSTEM .
