Install transmission mounting bracket (all-wheel drive vehicle)

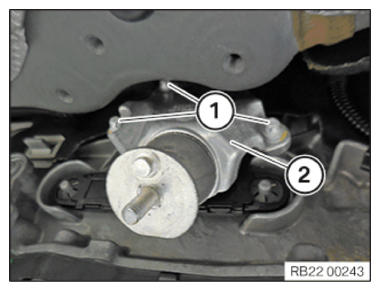

- Remove transmission mounting bracket (2) on the right transmission side.
- Replace screws (1).
Parts: Screws
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Transmission mounting bracket to transmission | ||
|---|---|---|
| M8 Replace screws. |
Tightening torque | 28 Nm |
Follow-up work
- Refer to INSTALLING TRANSMISSION CROSS MEMBER .
- Refer to INSTALLING THE TRANSMISSION BEARING SUPPORT (ALL-WHEEL DRIVE VEHICLE) .
- Refer to INSTALL REAR UNDERBODY PROTECTION .
