Remove transmission bearing support (all-wheel drive vehicle)

Preliminary work

• Refer to REMOVING REAR UNDERBODY PROTECTION .

Courtesy of BMW OF NORTH AMERICA, INC.

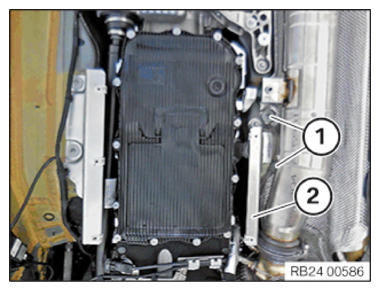

• Loosen nuts (1).
• Remove retaining plate (2).

Courtesy of BMW OF NORTH AMERICA, INC.

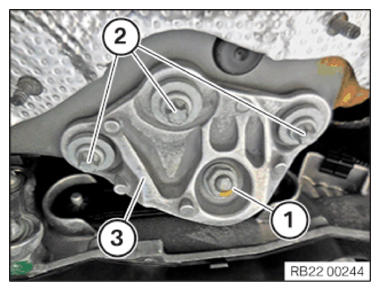

• Unfasten nut (1).
• Loosen screws (2).
• Remove transmission support holder (3).
