Install accelerator pedal module

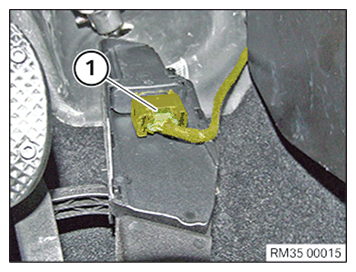

- Connect connectors (1) and lock.

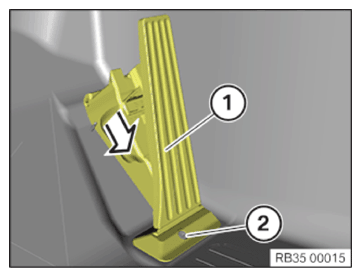

- Feed in accelerator pedal module (2) from above.

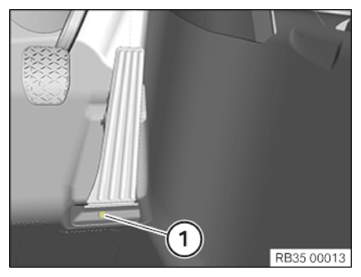

- Replace the hexagon socket screw (1).
Parts: Hexagon socket screw
- Fit the hexagon socket screw (1) and tighten.TIGHTENING TORQUES SPECIFICATION
Accelerator pedal module to body M6
Replace screw.Tightening torque 8 Nm - Clip in the cover (1).
