51 45 196 Replacing instrument panel trim at bottom right (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Preliminary works

• Remove the right FOOTWELL TRIM .

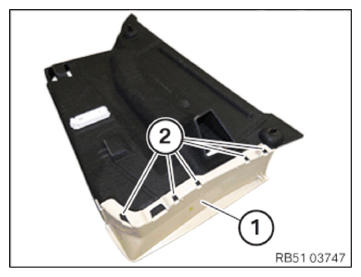

• Loosen the trim (1) from the latch mechanisms (2) and remove it.
• Remount the trim (1) on the new trim panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Lever out the footwell light (1) at the marked spot.
• Insert the footwell light (1) into the new trim panel.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the right footwell TRIM PANEL .
