Install the finisher on the right instrument panel

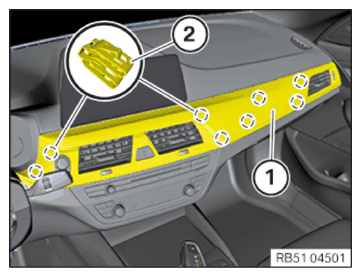

- Connect the finisher (1) with the associated connectors.
- Clip in the finisher (1) with the clamps (2).

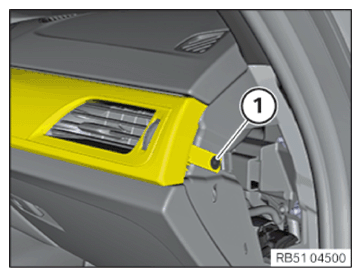

- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Decorative strip | ||
|---|---|---|
| Tightening torque | 1.8 Nm | |
Follow-up Work
- Install the right instrument panel SIDE PANEL .
