Removing the center fresh air grille

Preliminary works

Remove the right instrument panel SIDE PANEL .
Remove the right instrument panel FINISHER .

Loosen screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Pull off the cable clip from the fresh air grille.

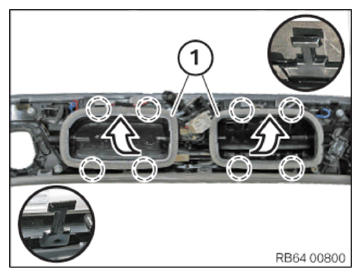

Carefully loosen the latch mechanisms and remove the fresh air grille (1) in the direction of the arrow.

G14197298

Courtesy of BMW OF NORTH AMERICA, INC.
