Remove roller sun blind
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.
- Electrically extend the roller sunblind (2) approx. 10 cm.
Interrupt the extending of the roller sunblind (2) by disconnecting the plug connection on the roller sunblind (2).

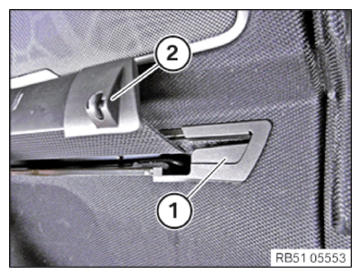

- Lift out the cover cap (1) at left and right with a plastic wedge, first at front then at rear, from the guides.
NOTE:
Perform the operations on the left and right side.

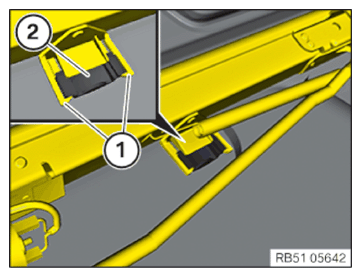

- Carefully widen the retaining bracket (1) and simultaneously move the spacers (2) to the initial position as shown.
NOTE:
TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.
Conduct the following operation with the assistance of a second person.

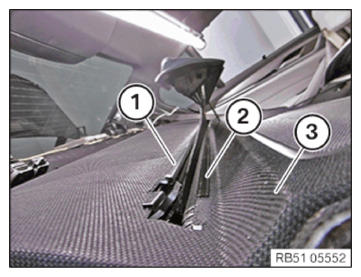

- Press together the rear groove (1) and the front guide (2) a little.
- Lift out the storage (3) over the front guide (2) of the roller sunblind in an upward direction.
- Pull the rear groove (1) from the storage (3) and carefully feed out the roller sunblind downward out of the storage shelf.
- Fully electrically move the roller sunblind back after feeding out from the storage shelf.
