51 47 065 Removing and installing/replacing sill trim, front left or right (outer) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the front sill trim
Install the front sill trim

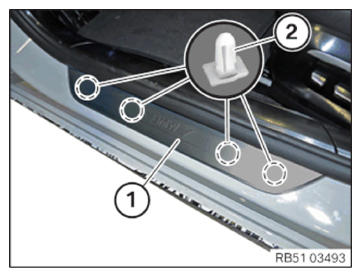

If necessary, unclip the clips (2) from the door sill with a suitable tool.
If necessary, replace faulty clips (2).
Clip in the front sill trim (1) with the clips (2).
