Installing the illuminated front sill trim

If necessary, unclip the remaining clips (2) in the body with a suitable tool.
Replace faulty clips (2) if necessary.
Position front sill trim (1) and feed in the cable.
Clip the front sill trim (1) into the clips (2).

Courtesy of BMW OF NORTH AMERICA, INC.

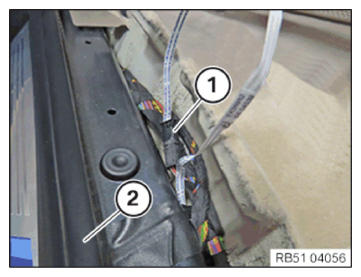

Connect connectors (1) and lock.
Mount edge protection (2) in area of the cable.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work
