Install luggage compartment wheel arch trim panel at left

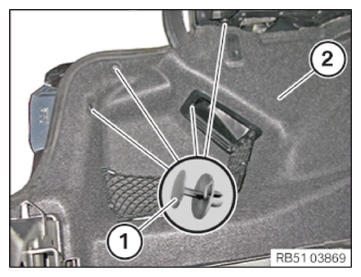

• Insert the luggage compartment wheel arch trim panel (2).
• Mount the expanding rivets (1).
• Make sure the luggage compartment wheel arch trim panel (2) is correctly fitted against the edge protection of the tailgate.

  Courtesy of BMW OF NORTH AMERICA, INC.

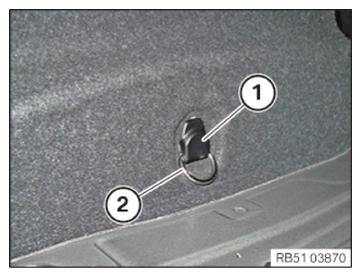

• Position the lashing eye (2).
• Tighten the associated bolt.

Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the trim (1).
• Insert the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

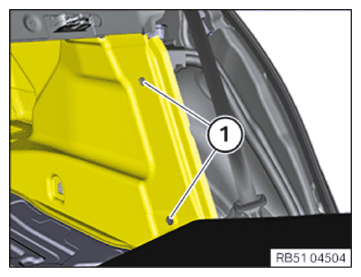

• Carry out only for G30:

  Mount the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install loading EDGE TRIM .
• Install the luggage compartment floor TRIM PANEL .
• Install rear SEAT BACKREST .
• Install the rear SEAT BENCH .
• Install left backrest SIDE SECTION .
