Installing the center underbody protection
NOTE:
To provide a better overview:

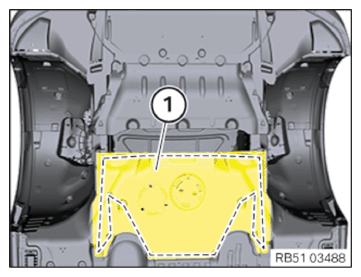

Schematic diagram with partially hidden components.
- Insert the center underbody protection (1).
- Tighten the screws along the dotted line.
TIGHTENING TORQUES SPECIFICATION
| Underbody protection |
| Screw |
Tightening torque |
3 Nm |
