Install the rear top cross connection

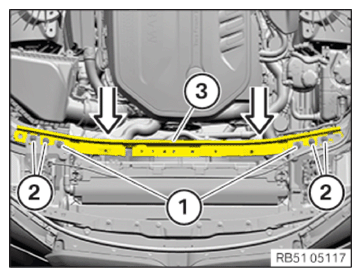

- Guide the cross connection (3) in from the rear in the direction of arrow.
- Tighten down screws (1) and (2).
TIGHTENING TORQUES SPECIFICATION
| Top rear cross connection | ||
|---|---|---|
| Torx screw M8x30 | Tightening torque | 19 Nm |
| Hexagon screw M8x20 |
Tightening torque | 19 Nm |
Follow-up Work
- Install front CROSS CONNECTION .
- Install RESONATOR or RESONATOR .
- Install left and right FRONT-END STRUT .
- Install the left and right top engine compartment COVER
