Removing the drive for air flap control at the top
Preliminary works
- Remove front UNDERBODY PROTECTION/FRONT THRUST FIELD .
- Remove the charge air cooler COVER .
NOTE:
RISK OF DAMAGE
No or insufficient cover of the discs of the evaporator and charge air cooler Deformation, damage to the discs.
No or insufficient cover of the discs of the evaporator and charge air cooler Deformation, damage to the discs.
- Cover discs sufficiently before starting work.
- Unlock and disconnect the plug connection from drive for air flap control.

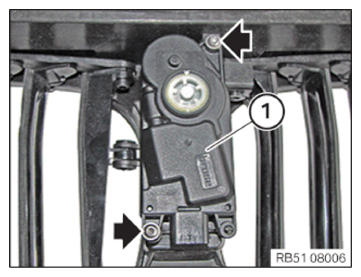

- Remove screws (arrows).
- Remove the drive (1).
