Installing the ignition coil of cylinder bank 2

Prerequisite

Ignition is switched off.

• Insert and install the ignition coil (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in and install the cable clip (3).
• Tighten down screw (2).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).

• Connect and lock connectors (arrows).

  The connectors (arrows) must audibly engage.

• Feed the cable (2) into the bracket (arrows).
• Secure clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.

→ Installing coolant expansion tank

Check

• Check if the foam seal on retaining bridge (1) in area (2) is damaged, porous, loose or present.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Foam seal (2) is damaged or porous or loose.

  Measure

  • Replace the foam seal (2).

  Parts:  foam

  Measure

  • Clean any foam seal residue or adhesive residue on the bonding surface in area (2) with cleaning agent R2.

  Parts:  Cleaning agent

  Measure

  • Bond foam seal (2).

  Result

  » Foam seal (2) is not installed.

  Measure

  • Retrofit foam seal (2).

  Parts:  foam

  Measure

  • Clean the bonding surface in area (2) with cleaning agent R2.

  Parts:  Cleaning agent

  Measure

  • Bond the foam with an adhesive.
  NOTE: RISK OF DAMAGE
  Injectors contaminated with coolant.
  Damage to and failure of injectors that were coated with coolant for an extended period.

  • Covering injectors with suitable auxiliary materials before testing or topping up the coolant is mandatory.
  • Covering injectors with suitable auxiliary materials before working on the cooling system in the area of the injectors is mandatory.
  • If necessary, draw off all of the coolant from the coolant expansion tank.
  • Always clean injectors or injector shafts contaminated with coolant (e.g. with compressed air).

  Courtesy of BMW OF NORTH AMERICA, INC.

  CAUTION: Swirling dirt particles caused by compressed air.
  Injury hazard!

  • Collect dirt particles, e.g. when blowing out, use cloth to do so.
  • Wear safety goggles.
  CAUTION: Materials harmful to health.
  Contact with fluids harmful to health!

  • Note and follow safety instructions on containers.
  • Conduct all work in appropriate personal protective equipment only.
  • Check the injector shafts for coolant residues (1).
  • If there are coolant residues (1) in the injector shaft: Clean the injector shafts with an air gun (2).

  Schematic diagram is for example purposes. Some parts may differ in certain details.

  • Illustrated on the S63T4:
  • Position the coolant expansion tank (2).
  • Connect and lock coolant hose in area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
  • Illustrated on the S63T4:
  • Remove the seal plug (1).

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Secure clamps (3).
  • Connect connectors (2) and lock.

    The connector (2) must engage audibly.

  • Connect and lock the coolant lines (1).

    Coolant lines (1) must engage audibly.

  • Remove the standard disconnection tool (arrows).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.
  • Illustrated on the S63T4:
  • Position the coolant expansion tank (2).
  • Clip the fuel lines in area (4) into expansion tank (2).
  • Remove clamping pliers (3).
  • Remove the rubber mat (1).

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Connect the holder (4) and lock.

    The holder (4) must engage audibly.

  • Secure the coolant hose (3) on the coolant expansion tank (2).

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Check the rubber mount (1) for correct fit.

    Courtesy of BMW OF NORTH AMERICA, INC.

  • Equipment specification with gasoline particulate filter:

  Guide the holder of gasoline particulate filter (2) downwards into the guide.

  • Tighten down screw (1).
  TIGHTENING TORQUES SPECIFICATION



  Gasoline particulate sensor to coolant expansion tank
  M6x20 screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Equipment specification with gasoline particulate filter:
  • Position the coolant expansion tank (2).
  • Tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Coolant reservoir
  M6x20 screw	Tightening torque	11 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Equipment specification with gasoline particulate filter:

    Press the rear hood seal (2) into the guide.

  • Guide cable (1) into the holders.
  • Check if the rear hood seal (2) and cable (1) fit correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Feed in and install coolant expansion tank (2).

  Tighten down screws (1).

  TIGHTENING TORQUES SPECIFICATION



  Coolant reservoir
  M6x20 screw	Tightening torque	11 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: TECHNICAL INFORMATION
  Follow notes for repair work on the cooling system.
  For additional information see:
  INSTRUCTIONS FOR REPAIR WORK ON COOLING SYSTEM .

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Top up the coolant expansion tank (1) with coolant up to the maximum mark  (2).
  • Close the sealing cap (1) until the arrows  align.

  Courtesy of BMW OF NORTH AMERICA, INC.

  → Installing the control unit bracket for cylinders 5 to 8

  NOTE: RISK OF DAMAGE
  Electrostatic discharge.
  Damage to or destruction of electrical components.

  • Leave the electrical components in their original packaging until they are being installed. Only use the original packaging for returning the product. Always package removed components straight away.
  • Read and comply with user information on using the associated special tool 12 7 060.
  • Only tap the housings of electrical components. Do not tap pins or multi-pin connectors directly.
  • Wear electrically conductive clothing and antistatic shoes (with ESD symbol).
  • For additional information see: NOTES ON ESD (ELECTROSTATIC DISCHARGE) PROTECTION .
  NOTE: TECHNICAL INFORMATION
  Follow instructions for removing and installing control units.
  For additional information see: 1200... INSTRUCTIONS FOR REMOVAL AND REPLACEMENT OF CONTROL UNITS .
  NOTE: TECHNICAL INFORMATION
  Disconnecting control units may cause fault code entries and functional limitations. Fault code entries must be read out and deleted if necessary.
  • Guide and install control unit bracket (2) with the DME control unit into holder (3).
  • Tighten down screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Control unit holder
  Hexagon screw	Tightening torque	8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Fasten all the clamps (2).
  • Connect all connectors (1) and lock.

  The connectors (1) must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

  → Install clean air pipe, top

  WARNING: Hot surfaces.
  Risk of burning!

  • Perform all work only on components that have cooled down.

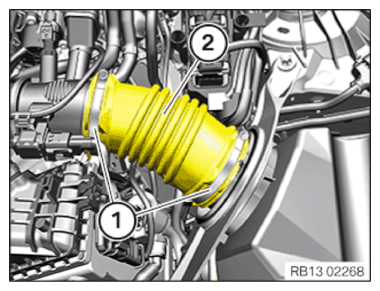

  • Feed in top clean air pipe (2) and install.
  • Tighten clamps (1).
  TIGHTENING TORQUES SPECIFICATION



  Upper clean air pipe to lower clean air pipe
  Hose clamp	Tightening torque	3 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  → Installing the cover of the left DME control unit

  • Feed in the cover (1) in the guides and install it.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING COOLANT EXPANSION TANK .
• Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING CLEAN AIR PIPE, TOP .
• Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING THE COVER OF THE RIGHT DME CONTROL UNIT .
• Refer to CONNECTING NEGATIVE BATTERY CABLE .
