Removing the left camshaft position sensor of the exhaust camshaft
Preliminary work
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to RELEASING THE LEFT CHARGE AIR LINE FROM THE EXHAUST TURBOCHARGER .
- Refer to REMOVING LEFT CLEAN AIR PIPE .

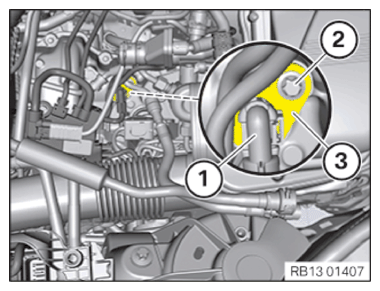

- Unlock connector (1) and detach.
- Loosen screw (2).
- Remove the left camshaft position sensor (3) of the exhaust camshaft.
