Installing the crankshaft sensor

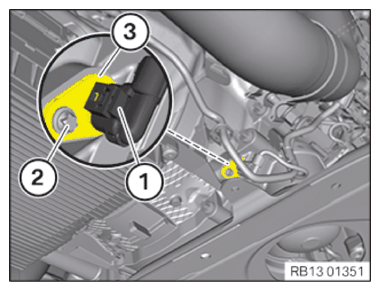

- Insert the crankshaft sensor (3) into the transmission housing and secure it with the bolt (2).
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Crankshaft sensor on transmission housing | ||
| M6x16 | Tightening torque | 8 Nm |
- Connect the connector (1) and engage it audibly.
Follow-up work
- Refer to INSTALLING REAR UNDERBODY PROTECTION .
