Install the acoustic cover for the engine at the front

Follow-up work

• Refer to INSTALL RESONATOR .
• Refer to INSTALL ACOUSTIC COVER .

• Check if the acoustic cover (2) is damaged in the marked area (1), if applicable, replace the acoustic cover (2).

  Parts:  Acoustic cover

Courtesy of BMW OF NORTH AMERICA, INC.

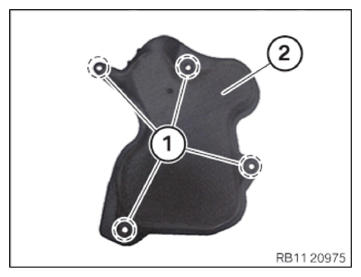

• Thread in and position the acoustic cover (2).
• Mount all the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
