Body Equipment - Repair (3 Of 3) (G30)
>>
51 76 Seals
>>
51 76 071 Replacing the top left engine compartment cover (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Install the cover in the engine compartment on top
Install the cover in the engine compartment on top

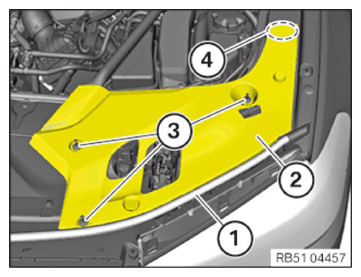

Insert the cover (2) in the area (4).
Secure expanding rivet (3).
Mount seal (1) on cover (2).
