52 26 Rear Seat, Through-Loading
>>
52 26 030 Removing and installing/replacing center armrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove rear center armrest
Remove rear center armrest
Fold the center rear seat down.

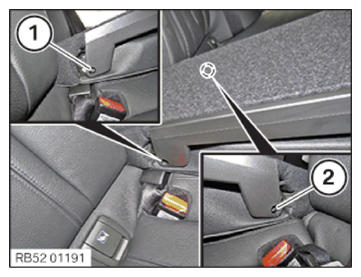

Loosen screws (1) and (2).
Fold the center rear seat up and remove the center armrest.
Courtesy of BMW OF NORTH AMERICA, INC.
