Installing the backrest frame for the front seat

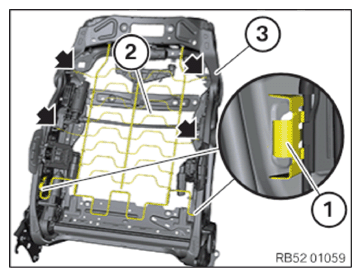

Attach spring mat (2) to backrest frame (3).
Fix spring mat in position (2) using clamps (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position backrest frame (2) on seat mechanism (3).

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Backrest frame to seat mechanism
M10	Tightening torque	38 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

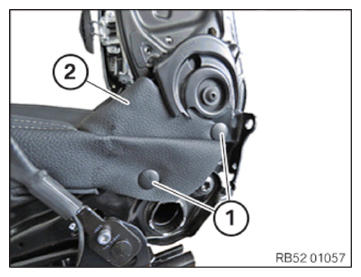

Secure cover (2) with clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

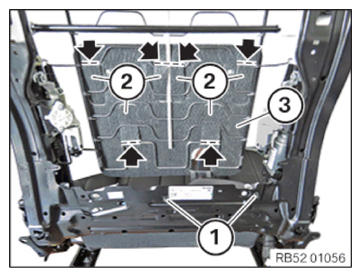

Insert lumbar support (3) complete with drive unit and valve body,
Attach the tabs (2) of the lumbar support (3) to the highlighted spring wires.
Secure the clips (1).

Courtesy of BMW OF NORTH AMERICA, INC.

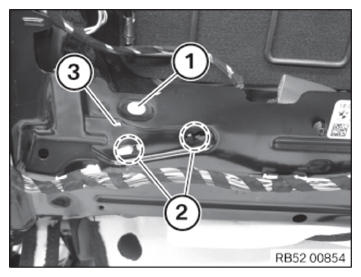

Insert the valve body (1) with the guides (2) into the backrest frame.
Clip in the valve body (1) using the latch mechanism (3).

Courtesy of BMW OF NORTH AMERICA, INC.

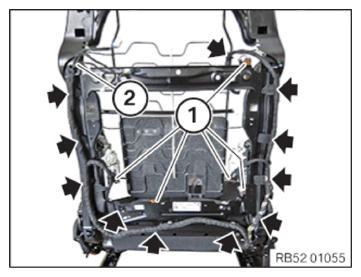

Secure the wiring harness (2) to all cable clips.
Connect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

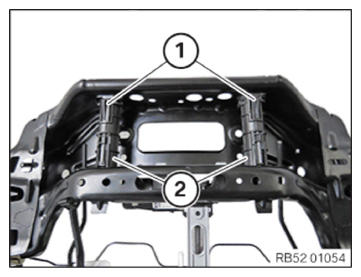

Insert the guide sleeves (2) from above and engage in backrest frame using the latch mechanisms (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work
