Crimping Micro Power Quadlock contacts (MPQ) (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)

Special tools required:

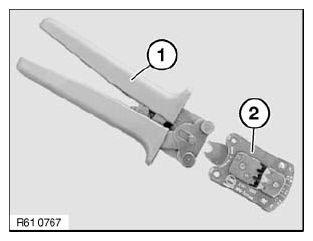

To crimp MPQ contacts, use hand pliers 61 4 321 (1) in conjunction with crimping head 61 4 325 (2) from crimping set 61 4 320 .

NOTE: Hand pliers (1) open automatically until limit position when handles are pressed together.

Courtesy of BMW OF NORTH AMERICA, INC.

Open hand pliers (1).

NOTE: Place contact (2) with utmost care in designated nest (observe line cross-section) in crimping head (3). Make sure it is exactly positioned.

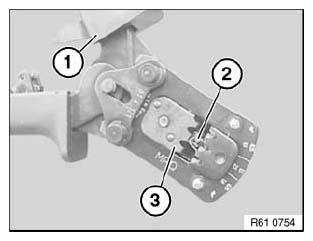

Place MPQ contact (2) in crimping head (3).

Close hand pliers (1) one notch.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: Follow procedure for cutting and stripping insulation from cables.

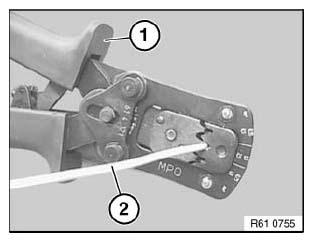

Insert stripped cable (2).

Close hand pliers (1) fully.

Open hand pliers (1) and remove cable (2).

IMPORTANT: Check contact for correct crimping.
