When replacing the backrest upper section adjustment gear: Adjust the dimensions

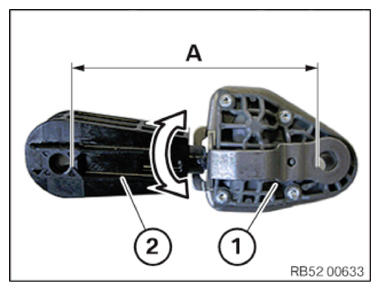

- Measure dimension (A) on the removed backrest upper section adjustment gear (1) .
- Replace the gear for the backrest upper section adjustment.
Parts: Transmission for backrest upper section adjustment
- Adjust dimension (A) by twisting the fixture (2)
on the new backrest upper section adjustment gear (1)
.
