Removing the top rear panel on the front seat rear panel
NOTE:
Description is for left component only. Procedure on the right side is identical.

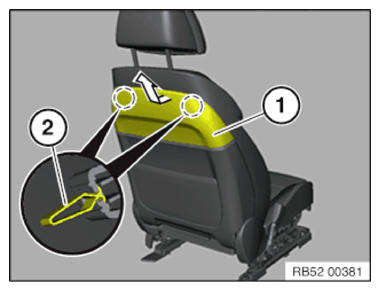

- Loosen the rear panel (1) from the clamps (2) towards the rear and pull them out of the bottom guides.
 Courtesy of BMW OF NORTH AMERICA, INC.
|

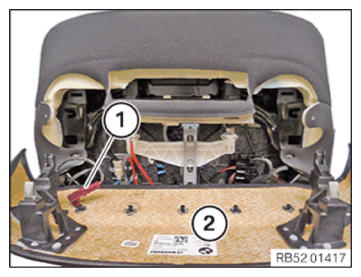

- Unlock plug connection (1) and disconnect.
- Remove the top rear panel (2).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
