Replacement at top with rear panel

Remove the light insert from the front seat rear panel

• Release the latch mechanisms using a screwdriver (3 mm blade).

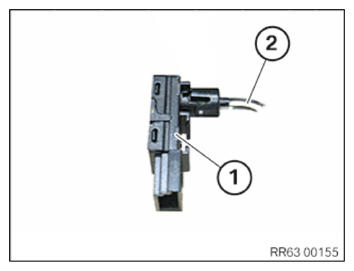

• Unclip the LED module (1) from the light insert (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

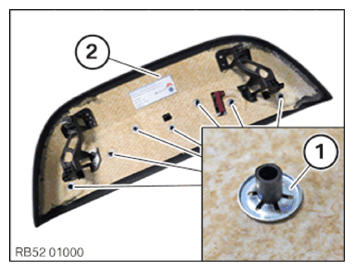

• Loosen the lock washers (1).
• Remove the light insert from the rear panel (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install the light insert on the front seat rear panel

• Insert the light Insert Into the rear panel (2).
• Secure the light Insert with the lock washers (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Carefully Install the light Insert (2) In the LED module (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
