Install crash-active head restraint for the front seat

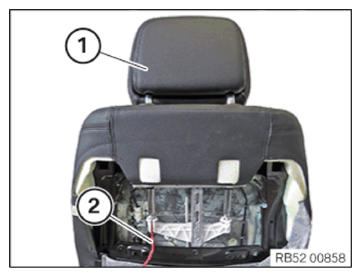

• Guide in the crash-active head restraint (1) with the cable (2) into the backrest from the top.

  Courtesy of BMW OF NORTH AMERICA, INC.

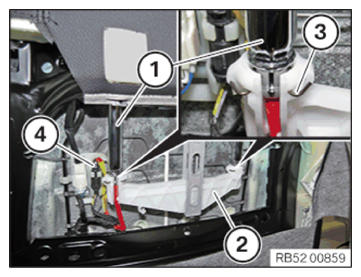

• Clip the crash-active head restraint (1) into the drive (2).

  The clamps (3) must engage audibly.

• Connect and lock the connector (4) and clip it into the cable clip.
• Check for the correct fit of the crash-active head restraint (1) in the clamps (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Check

• Check the correct latch mechanism of the head restraint with a pulling test.
• Pull the head restraint upwards by hand.

  Result

  » The head restraint cannot be pulled off.

  Measure

• Continue installation.
• Hand-tighten the bolt (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install front seat rear panel top rear PANEL .
• Connect all battery EARTH LEADS .
• Activate the 48 v ELECTRICAL SYSTEM .
