Install radiator

• Check if the cover (1) is mounted correctly at right on the radiator.
• If necessary, mount the cover correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

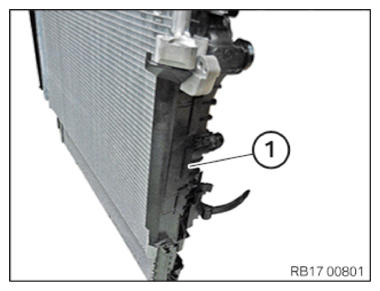

• Check if the cover (1) is mounted correctly at left on the radiator.
• If necessary, mount the cover correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

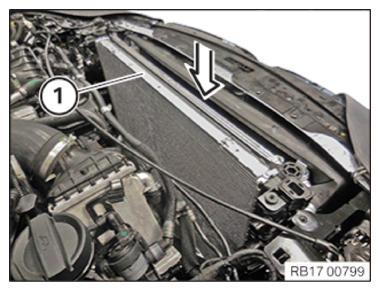

• Feed in and install the radiator (1) together with the air conditioning condenser and second person.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (1) bottom cooling module, left.

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten screw (1) bottom cooling module, right.

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the transmission oil feed line (1) to the transmission oil cooler and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

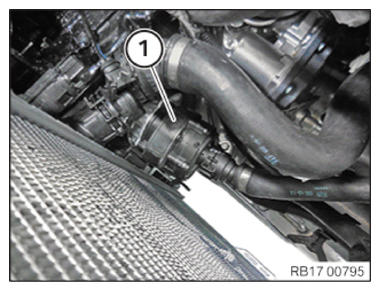

• Mount the auxiliary coolant pump for the exhaust turbocharger to the radiator and secure with the rubber band (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

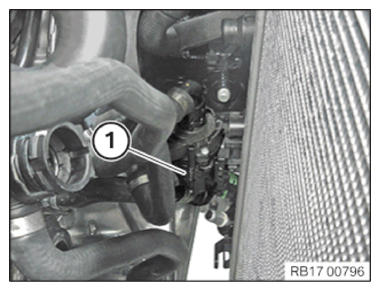

• Mount the auxiliary coolant pump to the radiator and secure with rubber band (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the coolant hose (1) to the radiator and audibly lock it.
• Connect the coolant hose (2) to the radiator and audibly lock it.
• Connect the coolant hose (3) to the radiator and audibly lock.

Courtesy of BMW OF NORTH AMERICA, INC.

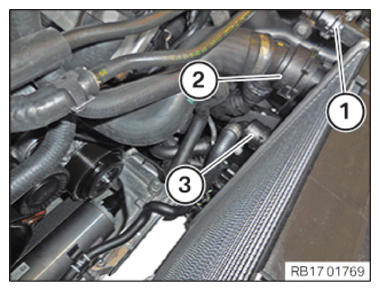

• Connect the coolant hose (1) to the radiator and audibly lock it.
• Pin up connector (2) and lock audibly.
• Connect the coolant hose (3) to the radiator and audibly lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace sealing rings with special tool 0 496 714 (00 9 030)  .
• Position refrigerant line (2) correctly.
• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALL THE COVER ON THE COOLING MODULE ON TOP .
• Refer to INSTALLING THE COVER ON THE BOTTOM COOLING MODULE .
• Refer to INSTALLING FAN COWL .
• Refer to INSTALL THE REAR TOP CROSS CONNECTION .
• Refer to INSTALL FRONT CROSS CONNECTION .
• Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
• Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
• Refer to EVACUATING THE AIR CONDITIONING .
• Refer to FILLING THE AIR CONDITIONING .
• Refer to FILL THE COOLING SYSTEM WITH THE VACUUM FILLING UNIT .
• Refer to VENT THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to CHECKING/TOPPING UP THE OIL LEVEL IN THE AUTOMATIC TRANSMISSION .
• Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
• Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
