Remove the backrest cover for the front seat

Preliminary works

• Remove REAR MONITOR .
• Remove front SEAT .
• Remove front seat outer COVER .
• Remove front seat inner COVER .
• Remove the front seat rear panel top rear PANEL .
• Remove the front seat rear panel rear bottom PANEL .
• Remove the front seat crash-active RESTRAINT .
• Remove for front seat head restraint height ADJUSTMENT DRIVE .
• Remove front seat side AIRBAG .
• Remove the front seat upholstery backrest COVER .

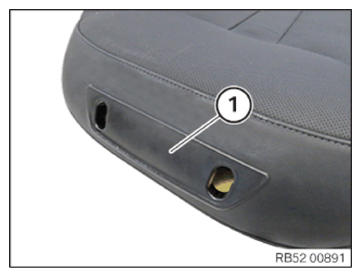

• Unclip the trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

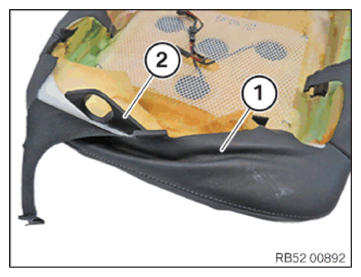

• Fold the backrest cover (1) towards the side and remove the holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

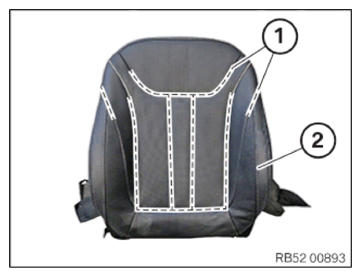

• Loosen all clamp on the trim wires (1).
• Remove the backrest cover (2) from the upholstery.
• Remove any remaining clamp chips from the backrest cover (2) and upholstery.

  Courtesy of BMW OF NORTH AMERICA, INC.
