Installing the coolant line from the coolant radiator to the heat management module

Follow-up work

• Refer to INSTALL CONTROL UNIT BRACKET .
• Refer to INSTALL THE INTEGRATED POWER SUPPLY MODULE (PDM) .
• Refer to INSTALLING THE DME CONTROL UNIT .
• Refer to INSTALL ACOUSTIC COVER .
• Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
• Refer to CONNECTING THE COOLANT LINES .
• Refer to FILL AND VENT THE HIGH-TEMPERATURE COOLANT CIRCUIT .

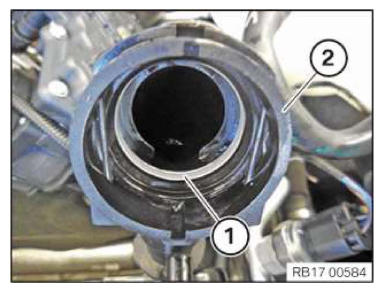

• Check sealing ring (1) of coolant line (2) for damage and, if necessary, replace it.

  Courtesy of BMW OF NORTH AMERICA, INC.

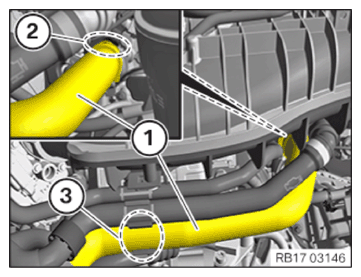

• Insert the coolant line (1) and connect in the marked area (2) and lock it.

  The coolant line (1) must engage audibly.

• Secure coolant line (1) into the holder in the marked area (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

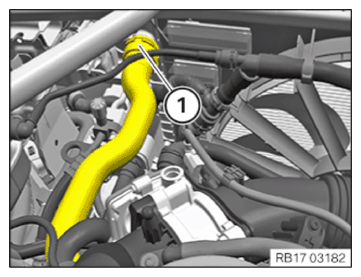

• Connect and lock coolant line (1).

The coolant line (1) must engage audibly.
