When replacing the transmission oil cooler: Remount components

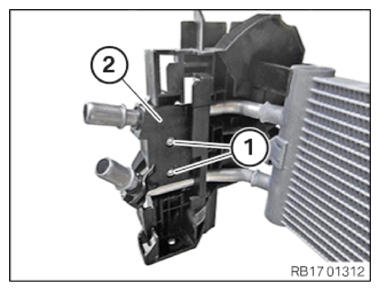

• Loosen screws (1).
• Remove cover (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

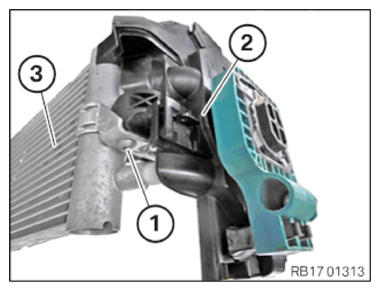

• Loosen screw (1).
• Guide out and remove the cooler module mount (2) from the transmission oil cooler (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Check

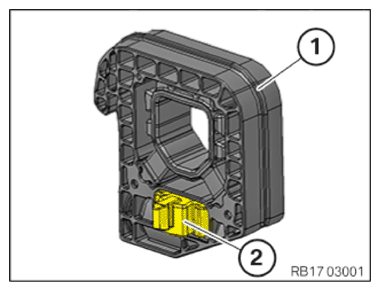

• Check if stop pad (2) is present  on the cooler module mount (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Stop pad (2) is not present  .

Measure

• Replace stop pad (2).

Result

» Stop pad (2) is present  .

Measure

• Continue with the next step.

• Replace the transmission oil cooler (3).

  Parts  : Transmission oil cooler

• Guide in and install the cooler module mount (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (2).
• Tighten down screws (1).
