Installing the right-hand charge air cooler

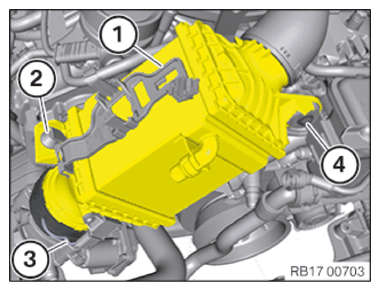

- Feed in charge air cooler (1) to the guide (2) and into the throttle body.
- Lock the lock (3) audibly.
- Tighten down screw (4).TIGHTENING TORQUES SPECIFICATION

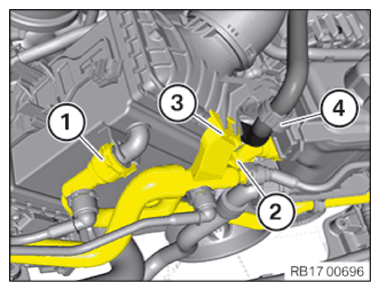

Charge air cooler to holder M6x35 Tightening torque 8 Nm - Connect coolant line (1) to the charge air cooler and lock it audibly.
- Connect coolant line (2) to the charge air cooler and lock it audibly.
- Secure the holder for the coolant hoses (3) on the charge air cooler.
- Secure the coolant line (4) on the charge air cooler.

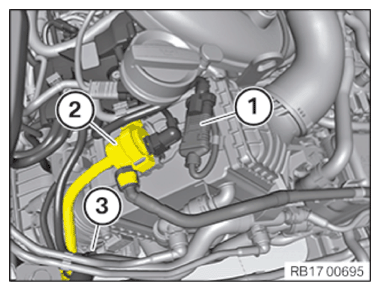

- Secure the plug connection (1) on the charge air cooler.
- Secure the tank vent valve (2) on the charge air cooler.
- Connect connector (3) to the pressure sensor on the charge air cooler and lock audibly.
Follow-up work
- Refer to INSTALLING THE RIGHT UNFILTERED-AIR DUCT .
- Refer to CONNECTING THE RIGHT CHARGE AIR LINE TO THE EXHAUST TURBOCHARGER
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALL ACOUSTIC COVER .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT PUMP .
- Refer to INSTALLING FAN COWL .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to INSTALL THE REAR TOP CROSS CONNECTION .
- Refer to INSTALL FRONT CROSS CONNECTION .
- Refer to INSTALLING FRONT-END STRUT ON LEFT AND RIGHT .
- Refer to INSTALLING THE COVER ON THE LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP
- Refer to FILL THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
