Removing gas cartridge for crash-active head restraint

Prerequisite

• Head rest has been completely extended.
  WARNING: Pyrotechnic components. Danger!  Life-threatening injuries!
• All work on pyrotechnic parts may be carried out by technically experienced and appropriately trained personnel only.
• Replace any damaged part or ones that have been dropped.
• For additional information see: 72 00 SAFETY REGULATIONS on handling components with gas generators.

Preliminary works

• Deactivate the 48 v ELECTRICAL SYSTEM .
• Disconnect all battery EARTH LEADS .

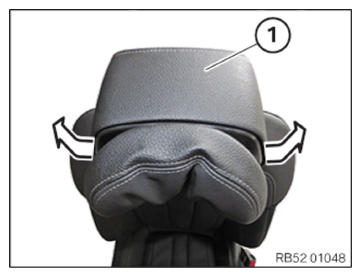

• Pull cover (1) out to the side slightly and unclip toward the back.

  Courtesy of BMW OF NORTH AMERICA, INC.

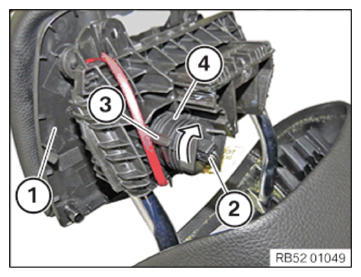

• Unlock plug connection (2) and disconnect.
• Slightly raise the lock (3) and turn the gas cartridge (4) in the direction of arrow.

  Courtesy of BMW OF NORTH AMERICA, INC.

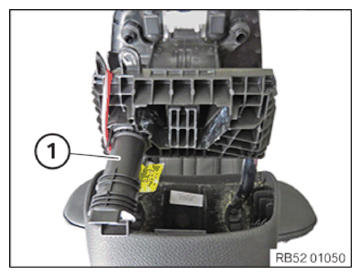

• Pull gas cartridge (1) out toward the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.
