Remove coolant pump for low temperature on right
Prerequisite
- Ignition is switched off.
WARNING:
Hot fluids.
Risk of scalding!
Risk of scalding!
- Conduct all work in the vehicle wearing appropriate personal protective equipment only.
CAUTION:
Residual pressure in the heating and air conditioning system.
Injury hazard!
Injury hazard!
- Wear safety goggles and protective gloves when disconnecting the refrigerant line.
- Close the refrigerant lines with seal plugs.
CAUTION:
Materials harmful to health.
Danger to health through contact with health-endangering cloths!
Danger to health through contact with health-endangering cloths!
- Observe and uphold safety instructions on the containers and the notices on the safety data sheets of the manufacturers.
- Conduct all work in appropriate personal protective equipment only.
Preliminary work
- Refer to SUCTION THE AIR CONDITIONING .
- Refer to REMOVING THE COVER ON LEFT AND RIGHT IN THE ENGINE COMPARTMENT AT THE TOP .
- Refer to REMOVING LEFT INTAKE FILTER HOUSING WITH LEFT FRONT-END STRUT .
- Refer to REMOVING RIGHT INTAKE FILTER HOUSING WITH RIGHT FRONT-END STRUT .
- Refer to REMOVE FRONT CROSS CONNECTION .
- Refer to REMOVE THE REAR TOP CROSS CONNECTION .
- Refer to REMOVE FAN COWL .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVING THE LEFT FRONT BOTTOM WHEEL ARCH COVER .
- Refer to REMOVE THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REMOVING THE UNDERBODY PROTECTION OF THE STEERING GEAR AND THRUST FIELD RESPECTIVELY .

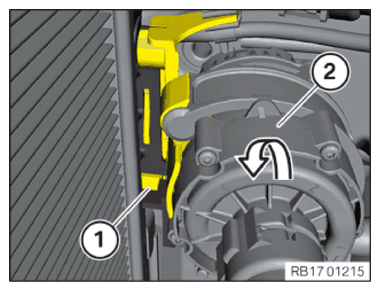

Loosen electric coolant pump of return line from holder.
