Installing the seat surface cover for the rear seat bench

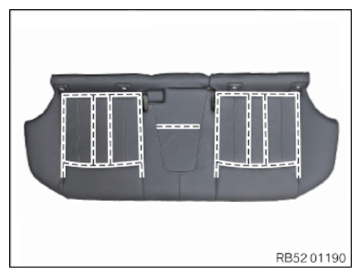

• Position the seat surface cover on the foam cushion.
• Secure all trim wires with clamps.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the clamps (2).

  Parts:  Clamp

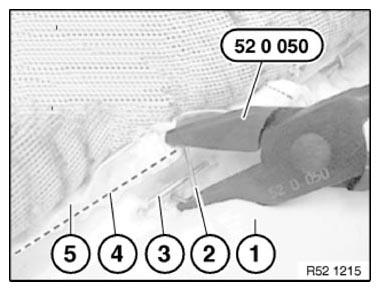

• Insert the clamp (2) with the special tool 0492 668 (52 0050)
• Surround the trim wire (3) of he foam cushion (1) and the trim wire (4) of the seat surface cover (5) with the clamps (2) and bend the clamp (2) to close it.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly feed in the seat surface cover into the foam cushion.

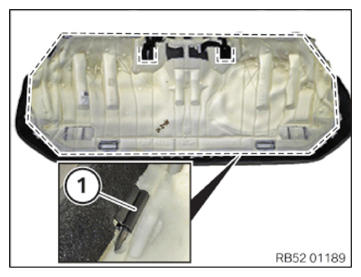

• Hook the seat surface cover with the holders (1) on the foam cushion.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the rear SEAT BENCH .
