Remove exhaust system

WARNING: Hot surfaces.
Risk of burning!

Perform all work only on components that have cooled down.

CAUTION: Component with heavy weight.
Injury hazard!

Note component's center of gravity.
Support component using a jack.
Secure component against falling off the jack.

NOTE: TECHNICAL INFORMATION
Mount the exhaust system in a de-energized state, following the tightening sequence from the rear silencer towards the exhaust manifold.

Preliminary work

Refer to REMOVE THE CONNECTING SUPPORT FROM THE TUNNEL .
Refer to REMOVING CENTER REAR UNDERSHIELD .

Unlock connector (1).
Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Unlock connector (1).
Disconnect the connector (1) of the exhaust flap (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Use a suitable jack to secure the exhaust system (1) from falling down. If the exhaust system is drained while under tension, there is the risk that the retaining bolts (2) will break.

Courtesy of BMW OF NORTH AMERICA, INC.

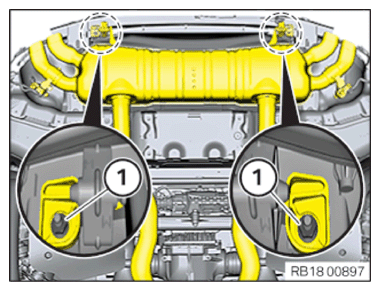

Loosen nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screw (1).
Lower holder (2) of the exhaust bracket.

Courtesy of BMW OF NORTH AMERICA, INC.
Loosen screws (1).
Lay ground strap to one side.
Loosen screw (3).
Lower holder (2) of the exhaust bracket.

Courtesy of BMW OF NORTH AMERICA, INC.

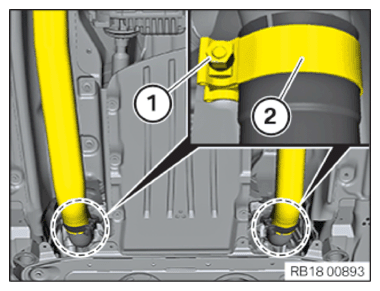

Version A:
Loosen nuts (1).
Slide circlips (2) to the rear.
Guide out and remove the exhaust system with the help of three persons.
Remove the exhaust system towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Loosen union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Version B:
Release nuts (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Version B:

Release nuts (1).

Guide out and remove the exhaust system with the help of three persons.

Remove the exhaust system towards the rear.

Courtesy of BMW OF NORTH AMERICA, INC.
