Install the backrest frame for the center rear seat backrest

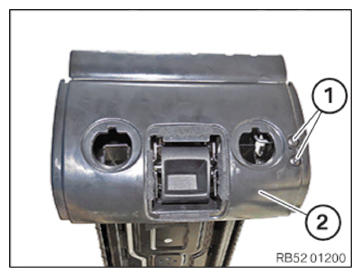

• Position the insert (2).
• Tighten the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

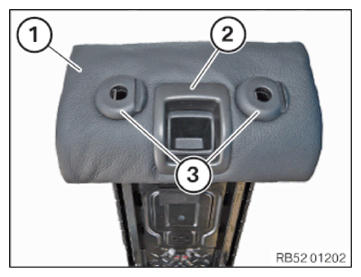

• Position the seat cover (1).
• Clip in the trim (2) and the guide sleeves (3).

  The locks of the guide sleeves point in the direction of travel to the left.

  Courtesy of BMW OF NORTH AMERICA, INC.

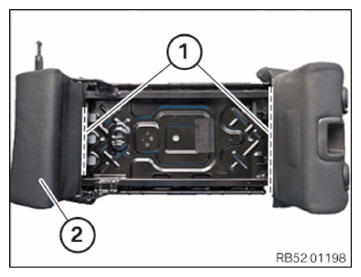

• Insert the cushion (2).
• Attach the seat cover in the marked area (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

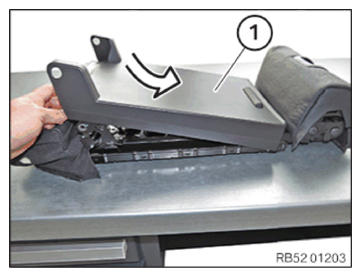

• Clip in the trim (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

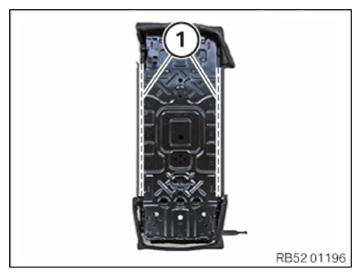

• Check the trim (1) for correct fit on the backrest frame.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up Work

• Install the center rear seat backrest rear PANEL .
• Install center rear seat BACKREST
• Install the rear center HEAD RESTRAINT .
• Install the left rear seat BACKREST .
• Install left side section BACKREST .
• Install the rear SEAT BENCH .
