52 26 Rear Seat, Through-Loading
>>
52 26 303 Removing and installing/replacing actuator for left or right rear seat backrest (530i 2017-2022, 530i xDrive 2017-2022, 530e PHEV 2018-2022, 530e xDrive PHEV 2018-2022, 540i 2017-2022, 540i xDrive 2017-2022, M550i xDrive 2018-2022)
>>
Remove the control for the rear seat backrest
Remove the control for the rear seat backrest
Preliminary works
Remove the
BACKREST LOCK

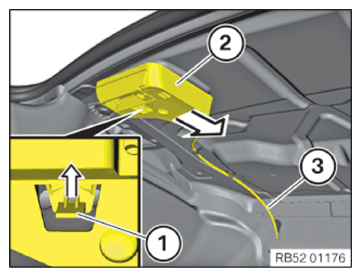

Press the lock (1) to the rear.
Slide the control (2) forward and guide it out of the body.
Guide the Bowden cable (3) out of the body.
Courtesy of BMW OF NORTH AMERICA, INC.
