Install the backrest lock

Clip in the Bowden cable (2) in the backrest lock (1).
Check for correct fit of the Bowden cable (2) on the backrest lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

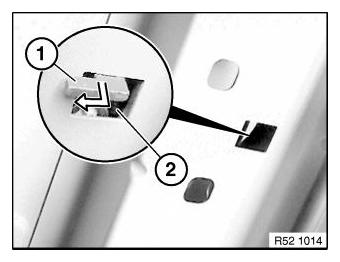

Insert the backrest lock into the body and feed in the guide (1) into the recess (2).

Courtesy of BMW OF NORTH AMERICA, INC.

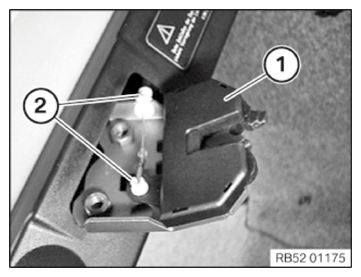

Screw in the screws (2) several rotations.
Clip in the Bowden cable into the holder (1).
Lock the rear seat backrest and press back hard.

Tighten the screws (1).

TIGHTENING TORQUES SPECIFICATION

Backrest lock to body
M8	Tightening torque	19 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
