Replacing the foam seat on the rear seat bench
Preliminary works
- Remove rear SEAT BENCH .
- Remove all the ISOFIX TRIMS .
- Remove the rear seat bench seat surface COVER .
- Replace the foam seat on the rear seat bench.
Parts: Foam seat
Replacing heating mats of rear seat bench (SA4HA)
NOTE:
TECHNICAL INFORMATION
The heating mat is bonded to the foam pad and cannot be disassembled without damaging it.
When replacing, new heating mat must always be fitted with new foam pads.
The heating mat is bonded to the foam pad and cannot be disassembled without damaging it.
When replacing, new heating mat must always be fitted with new foam pads.
NOTE:

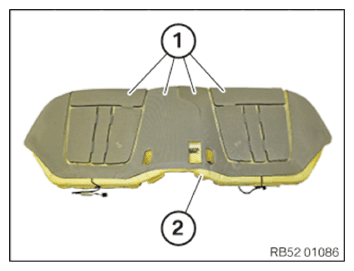

Schematic diagram is for example purposes. Some parts may differ in certain details.
- Replace the heating mats (1).
Parts: Heating mats
- Place and align the heating mats (1) on to the new foam seat (2).
- Bond the heating mats (1) with the new foam seat (2).
Follow-up Work
- Install the rear seat bench seat SURFACE COVER .
- Install all ISOFIX TRIMS .
- Install the rear SEAT BENCH .
