Install catalytic converter
Prepare for the installation of the catalytic converter
- Replace the V-ribbon clip (1).
Parts: V-band clamp
- Replace gasket (1).
Parts: Gasket
- Feed in and install catalytic converter.
- Lock clamp (1).
The clamp (1) must engage audibly.
- Tighten V-band clamp (1).
TIGHTENING TORQUES SPECIFICATION
| Catalytic converter to exhaust turbocharger | ||
|---|---|---|
| V-band clamp Replace V-band clamp. | Tightening torque | 19 Nm |

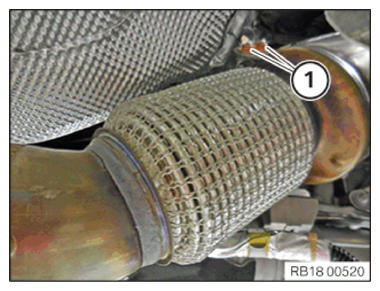

- Replace copper-coated nuts (1).
Parts: copper-coated nuts
- Tighten copper-plated nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Catalytic converter to holder | ||
|---|---|---|
| M8 copper-plated nut Replace nut. |
Tightening torque | 28 Nm |
| M8 zinc-plated nut | Tightening torque | 19 Nm |
Follow-up work
- Refer to INSTALLING THE COMPLETE EXHAUST SYSTEM .
- Refer to INSTALL THE CONNECTING SUPPORTS ON THE TUNNEL .
- Refer to INSTALL THE THRUST FIELD .
- Refer to INSTALLING THE UNDERBODY PROTECTION OF THE STEERING GEAR OR THE FRONT THRUST FIELD .
- Refer to INSTALL THE FRONT UNDERBODY PROTECTION OR FRONT THRUST FIELD .
- Refer to REPLACING THE OXYGEN MONITOR SENSOR
- Refer to REPLACING THE LAMBDA OXYGEN SENSOR
- Refer to INSTALL CLEAN AIR PIPE, TOP .
- Refer to INSTALLING INTAKE SILENCER HOUSING .
- Refer to INSTALL ACOUSTIC COVER .
