Tightening the oil drain plug

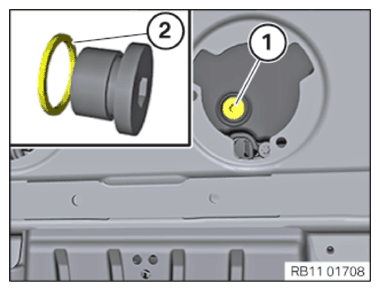

- Replace sealing ring (2).
Parts : Sealing ring
- Position oil drain plug (1) on the oil sump and tighten.
TIGHTENING TORQUES SPECIFICATION
| Oil drain plug on oil sump | ||
|---|---|---|
| M18x1.5 Replace the sealing ring. |
tightening torque | 40 Nm |

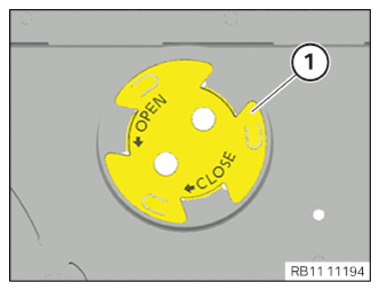

- Install service cap (1).
Follow-up work:
- Refer to TOPPING UP THE MOTOR OIL .
- Refer to CHECK ENGINE OIL LEVEL .
