Join the radial shaft seal at the flywheel
NOTE:
TECHNICAL INFORMATION
The work must be performed with vehicle care to prevent component damage.
The work must be performed with vehicle care to prevent component damage.

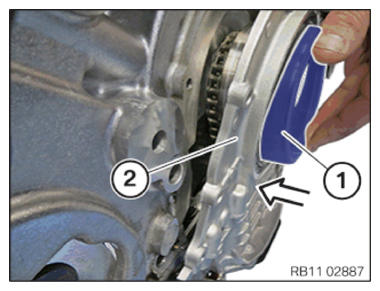

- Mount the housing cover (2) with support ring (1) only.
- Position the support ring (1) on the crankshaft for the installation.
- Slide the housing cover (2) with the radial shaft seal on in the direction of the arrow.
