Removing the fan for the seat cushion surface on the front seat

Prerequisite

Thigh support is adjusted fully forwards.

Preliminary works

Remove front SEAT .
Remove front seat outer COVER .
Remove operating unit for SEAT ADJUSTMENT .
Remove the front seat support outer COVER .
Remove front seat inner COVER .
Remove the front seat, SEAT COVER with cushion
Partially remove the front seat, SEAT COVER .

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

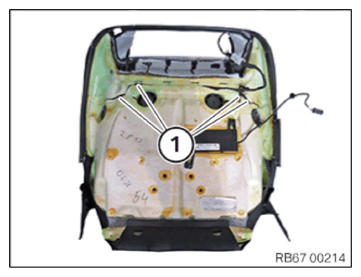

Unlock and disconnect plug connections (1).

G14197456

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: For a better overview the removed condition is shown here.

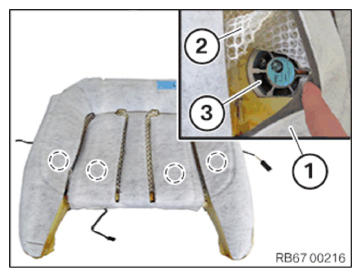

Push the heating mat (1) and the climate-control mat (2) to the side.
Unclip the fan (3).

G14197457

Courtesy of BMW OF NORTH AMERICA, INC.
