Install the fan for the backrest on the front seat
NOTE:
For a better overview the removed condition is shown here.

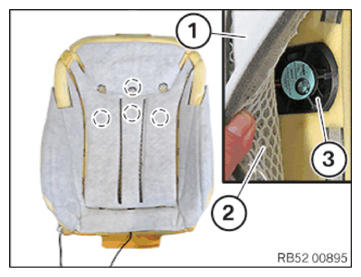

- Push the heating mat (1) and upholstery (2) towards the side.
- Insert and clip in the fan (3).
- Position the seat cover (2) on the upholstery.
- Secure all released trim wires (1) with the clamps.
- Replace the clamps (2).
Parts: Clamps
- Insert clamp (2) with special tool 0 492 668 (52 0 050) .
- Clasp the trim wire (3) of the upholstery (1) and the trim wire (4) of the cover with the clamp (2) and bend the clamp (2) to close it.
| 1 | Upholstery |
| 2 | Clamp |
| 3 | Trim wire in upholstery |
| 4 | Trim wire in cover |
| 5 | Seat cover |
Follow-up Work
